The Masterpiece Series is, without question, the pinnacle of what is technically achievable in speaker design. This loudspeaker stands in a league of its own, the culmination of over 20 years of expertise, relentless innovation, and a steadfast refusal to compromise on any aspect of performance.
Whether configured with a single Octahorn or the dual version, the Masterpiece delivers breathtaking sound. Each Octahorn houses two 15” hard-suspension woofers that channel their energy through a more than three-meter-long exponential horn. Whether it’s the rumbling power of a thunderous bassline or the delicate touch of a piano key, the Octahorn handles every nuance with authority and precision.
The physical presence alone is striking and leaves no doubt about the seriousness of this design. Each Octahorn weighs nearly 700 kg, stands over two meters tall, and is constructed using meticulously matched, reinforced materials for unmatched stability and resonance control.
Midrange Redefined
From 120 Hz upwards, the HornSolutions 15A takes over with unmatched finesse. With a horn mouth area exceeding two square meters and a staggering length of over 4.3 meters, it reveals micro-details in your music you may not have realized were even there. Paired with the HornSolutions 666 DB compression driver, this setup unleashes a jaw-dropping 118 dB of perfectly controlled sound.
In terms of dynamics, microdynamics, resolution, soundstage layering, and depth, the Masterpiece Series sets entirely new benchmarks. This isn’t just a loudspeaker; it’s a revolution in sound design, offering a completely reimagined approach to horn speaker technology.
High Frequencies, Perfectly Delivered
Topping off the system is the Elysio HT10 tweeter horn, an upgrade of the highly acclaimed Elysio HT9. Equipped with a state-of-the-art beryllium driver, this tweeter delivers unparalleled precision, effortlessly covering frequencies from 1.5 kHz to over 20 kHz. Every subtle nuance is faithfully reproduced with astonishing clarity and detail.
Crossover Mastery – “The Networks”
Bringing everything into perfect harmony is our custom-built passive crossover, The Networks. This is no ordinary crossover – it’s a masterpiece in itself. Featuring 3 mm² copper air-core coils, premium Mundorf capacitors, and absolutely nothing else, The Networks boasts an internal resistance of less than 0.1 ohms. Each channel weighs an impressive 130 kg, ensuring unmatched purity and efficiency in signal transmission.
A New Standard in Audio
The Masterpiece Series doesn’t just play music; it transforms the way you experience sound. It represents the ultimate synergy of engineering, craftsmanship, and artistry, creating a system that redefines what is possible in high-fidelity audio. This is where sound is not just heard but felt—an experience that is nothing short of extraordinary.

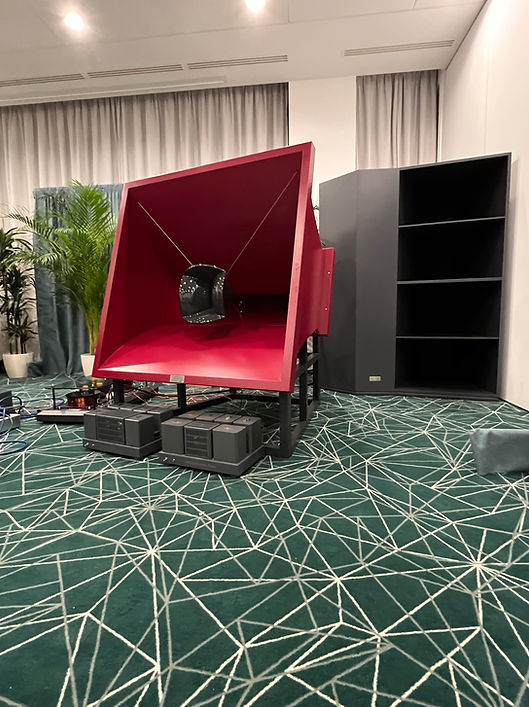

The Masterpiece Gallery
Technical Specifications:
The Masterpiece Series is available in two varieties: Standard and Reference. Standard fits together into a complete unit and comes equipped with a single Oktahorn, while Reference comes with a Double Oktahorn to be positioned behind the main horn speaker.
Standard
Single Oktahorn:
Dimensions: 101cm(H) x 160cm(W) x 150cm(D)
Horn Length: 300cm
Directivity Around: 38%
Usable Low Frequency Limit: 25Hz
Recommended Crossover Frequency: 250Hz
Number of 15" Drivers per Horn: One
Weight: 405kg per unit
Reference
Double Oktahorn:
Dimensions: 201cm(H) x 160cm(W) x 150cm(D)
Horn Length: 300cm
Directivity Around: 38%
Usable Low Frequency Limit: 25Hz
Recommended Crossover Frequency: 250Hz
Number of 15" Drivers per Horn: Two
Weight: ~700kg per unit
.jpg)
Both Standard and Reference versions of The Masterpiece Series by HornSolutions come with the WE15A as the low-mid horn, paired with an excellent HT10 Elysio Tweeter as the high range.
WE15A Low-Mid Horn:
Dimensions: 144cm x 144cm
Horn Length: 438cm
Directivity Around: 45%
Usable Low Frequency Limit: 80Hz
Recommended Crossover Frequency: 100Hz/6,000Hz
HT10 Elysio Tweeter:
Range: 900Hz-1200Hz
Dimensions: 33cm x 36cm x 70cm
