Pegasus II
by
WELLFLOAT
Designed by Shiro Nakamura, a world-famous car designer whose resume includes the legendary Nissan GT-R and Fairlady Z, WELLFLOAT's Pegasus is the world’s first 4-layer “multi-stage pendulum” high-end audio rack incorporating all the technologies of WELLFLOAT Babel, which became an unprecedented worldwide hit as a top-quality audio insulator, and WELLFLOAT Double, which has been captivating many audio enthusiasts since its release.

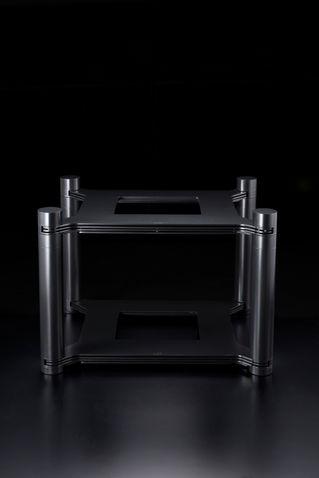

Multi-stage pendulum rack shelf section
The rack shelf’s three bottom plates are made of rugged stainless steel, which ensures high rigidity and a low center of gravity. This shelf section alone can be used as a two-tiered multi-stage pendulum audio rack.
The lowest stabilizer allows the two-stage pendulum to move completely independently and with stability against any load.

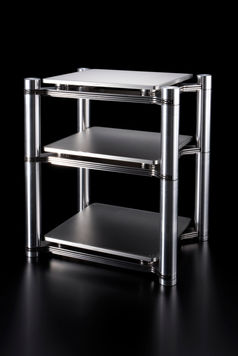

Multi-stage pendulum audio board “Double 4548”
Two-stage pendulum base frame structure and Double4548,a four-stage pendulum effect equivalent to Babel is achieved. You can also use your own audio board.
Technical Specifications
Design: 4-layer “multi-stage pendulum” structure comprising 2 layers of rack shelves and 2 layers of Double 4548 boards
Material: Stainless steel (shelf), aluminum (pole)
Dimensions: 635 x 501mm (floor installation size)）
Load capacity: 95kg/static load per shelf (When using Double4548, equipment weight up to 85kg）
Number | Composition | Model Name | Dimensions | Weight | What's In The Box |
|---|---|---|---|---|---|
1 | Bottom shelf | Pegasus II Bottom Shelf | 635x501x80mm | 18kg | End caps x4 |
2 | Additional Shelf (short pole) | Pegasus II Upper Shelf L200 | 635x501x280mm | 21kg | Poles (shelf spacing 200mm) x4 |
3 | Additional Shelf (long pole) | Pegasus II Upper Shelf L300 | 635x501x380mm | 22kg | Poles (shelf spacing 300mm) x4 |
4 | Audio board (recommended) | Double 4548 | 480x450x44mm | 11kg | - |
