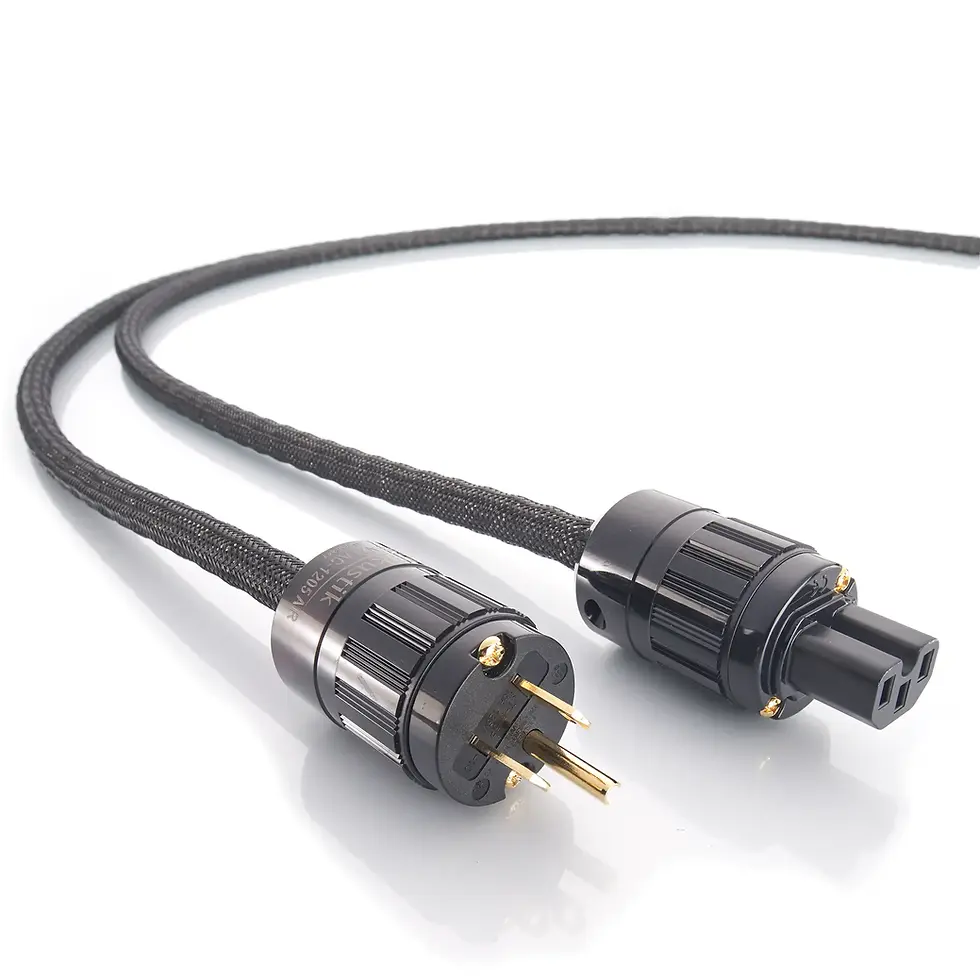

AC-1205 AIR - C15 Basic (15A)
Soundscapes are created by the dynamics in the music. To exploit the full potential of your high-end audio components, you need a reliable power pipeline that provides your components with the power peaks with as little delay and loss as possible. This is where the AC-1205 AIR mains connection cable comes into play.
Our innovative AIR technology has already caused a sensation in the high-end scene and now also forms the architectural basis for the AC-1205 AIR mains cable. Using specially developed clips, the individual conductors are held at fixed distances and insulated from each other by an "air dielectric". This reduces both capacitive and inductive interference and ensures a smooth flow of energy.
The multicore design of the AC-1205 AIR neutralizes the magnetic interference and magnetic fields generated by current peaks and minimizes the line inductance. In addition, the large number of individual wires reduces the skin effect that occurs at high frequencies. Splitting the current across many cores not only increases the usable conductor cross-section, but also increases the overall cross-section of the cable. The result is a reliable power supply, even in the most demanding passages, which allows your sound system to develop its full potential.
To minimize electromagnetic interference fields, the AIR cables are shielded with a dense braid of tinned copper. This not only protects your audio components, but also neighboring cables from unwanted interference caused by the high current peaks in the power cable.
The in-akustik High End AC-1205 AIR mains cable is an outstanding energy pipeline for perfect audiophile sounds. It eliminates unwanted effects and makes a not insignificant contribution to the most authentic music reproduction possible.
Technical Specifications
Application: High-end mains power connection Cable diameter: 13 mm Certificate: Yes Conductor cross-section: 2 x 1.5 mm² (4 x 0.75 mm²) Conductor material: High-purity copper Conformity: CE, REACH, RoHS Contact enhancement: Gold-plated Customized assembly: On request Design: 4-fold multicore| Ground wire Dielectric: Air Individual inspection: Function, High voltage, Insulation, Protective conductor Jacket: PE network jacket Length: 1 m, 1.5 m, 2 m, 3 m Load capacity: 1250 W (125 V AC/15 A) Phase marking: Yes Protection class: 1 Rated current: 15 A Rated voltage: 125 V AC | 50/60 Hz Shielding: Dense copper braid, tin-plated (oxidation protection) Link to Manufacturer
