For around 100 years the dominant technology to reproduce sound has been the dynamic loudspeaker. Its principle is fairly simple, which is why it continues to be used, but it also has major drawbacks electrically, mechanically, and acoustically. To overcome the limitations of the dynamic driver and other technologies, Arya Audio Labs utilises a fundamentally different approach. Rather than using a heavy diaphragm with a separate voice coil, the AirBlade transducer incorporates ultralight foil elements arranged in layers with conductive Aluminium traces directly bonded to them. When an electrical signal is applied, opposite layers of the diaphragm either move towards or away from each other depending on the direction of the current thus moving air and creating sound. By distributing the diaphragm area over several layers and implementing a curved shape, AirBlade avoids the typical beaming problem of traditional drivers while achieving higher power handling, reduced distortion, and better air coupling due to its large diaphragm surface area.
​

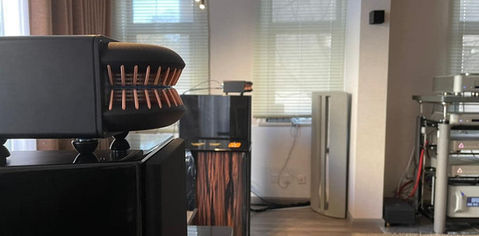

As a result, AirBlade is the world’s only high-frequency loudspeaker with true constant directivity. In the form of AirBlade HYPE add-on it is used to augment even the most opulent high-end audio systems by compensating for their directional behaviour and enhancing their sonic properties.

Constant Directivity

The AirBlade membrane is based on a modified Air Motion Transformer (AMT) principle where an ultra-light foil, submerged in a strong magnetic field, is moving in a push-pull fashion. This modified AMT features a curved membrane structure that enables the transducer to maintain an essentially identical Frequency Response on-axis and off-axis over a 180° angle, eliminating the sweet-spot issue and delivering a true wide-stage sound reproduction.

Technological tour de force

The AirBlade transducer is a technological masterpiece consisting of more than 150 precision-engineered parts. Its powerful magnet structure drives a diaphragm of merely 3 grams that covers an area of 19,200mm², equivalent to 37 x 1" tweeters!
