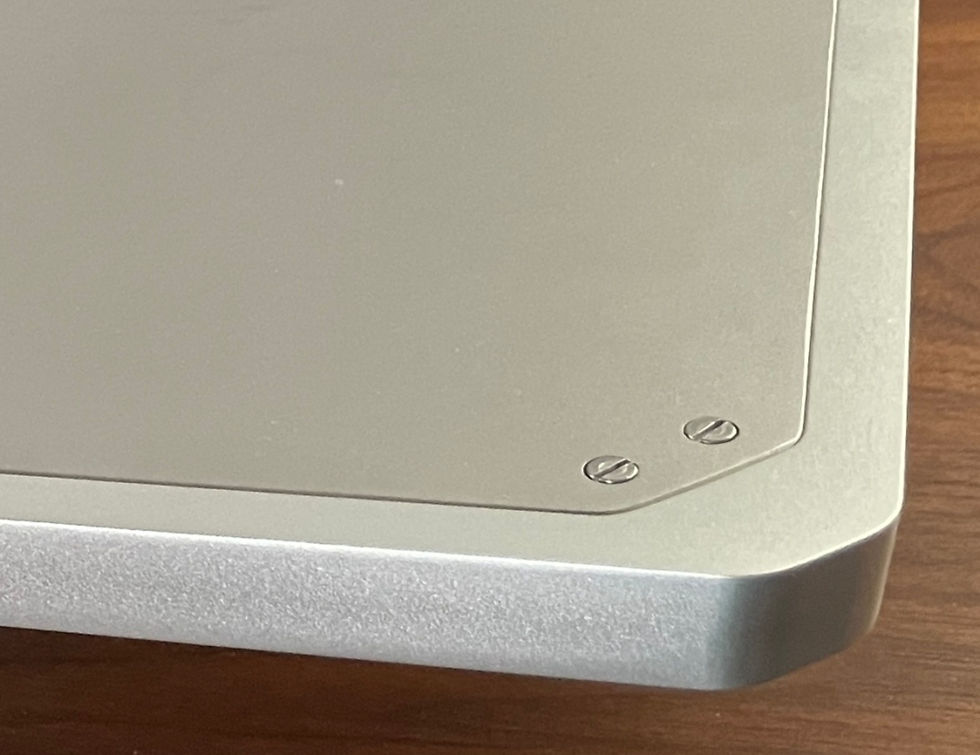

WELLFLOAT Double Boards
The ultimate in anti-vibration measures, having a twostage pendulum structure. The multistage pendulum structure developed for the Wellfloat Babel is used for boardtype insulators. The unique fourunit, twolayer Wellfloat mechanisms achieve the squared effect of the singlestage pendulum type!
Technical Specifications
- The latest in the Wellfloat Board series, using “hanging structure,” which is well known to audiophiles, suppresses sound distortion to the utmost limit.
- Superior vibration suppression characteristics due to the “multistage pendulum (2 layers)” which is also used for gravity wave detection.
- A “multistage pendulum” with resonant frequency f₀ has a damping characteristic of H(f)~(f₀/f ) 2 x n power, while the Wellfloat Double has a damping characteristic at f₀ =3Hz, at f = 300 Hz, two stages theoretically have an isolation ratio of the eighth power of 10.

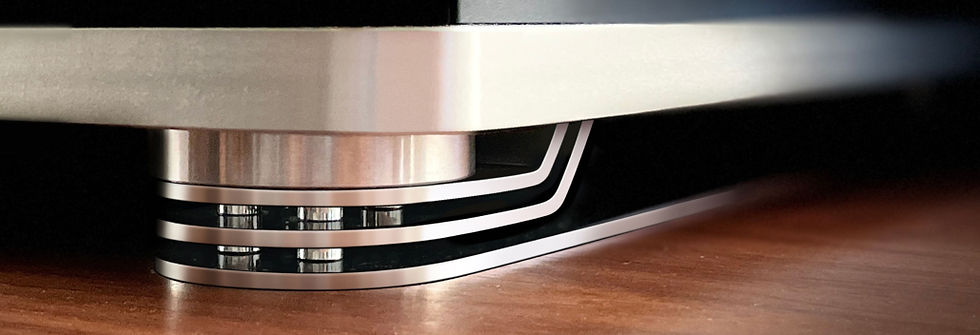

Design: Built-in 8 small WELLFLOAT mechanisms (4x2 layers)
Material: Stainless steel, aluminium
Finish: Silver or Black available
Load Capacity: 200kg (static load)
Dimensions: W480xD450xH44 (mm)
Weight: 10.8kg
Link to Manufacturer
$3,800.00Price
